BIP IP driver for LINUX

Our benchmark with TCP

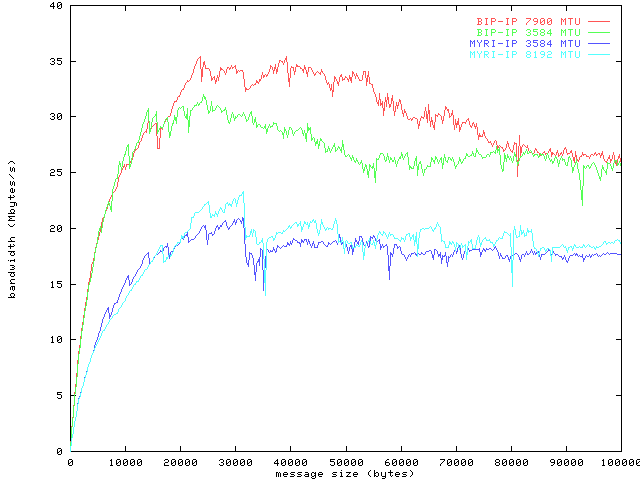

Below is a comparison of the performance of BIP-IP against the Myricom v3.09 driver. The bandwidth was measured by doing 100 ping-pong tests between two machines and keeping the median value (generally the 100 results for each size are within a few percent).
Each driver was tested twice with two different compiled-in MTU values.

small TCP

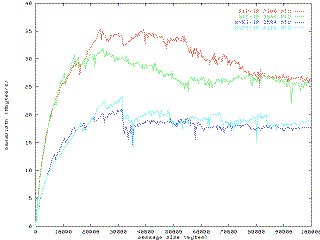

Performance curves, link to large graph.
Click to get large graph

Test method details

The test code on the master side looks like:


    length = ...;
    buf = malloc(length);
    for (i=0;i<nbtest;i++) {
      starttimer();
      send(tcp_fd,buf,length,0);
      do {
        n = recv(tcp_fd,buf,length,0);
        buf += n;
        length -= n;
      } while (length > 0);
      end_timer();
      time[i] = timer_value();
    }

The code of the receiver is the same expect the send and recv are done in the opposite order. The TCP connection have been set with the following options (on each side):


    ndelay = 1;
    snd_buf = 65500;
    rcv_buf = 65500;
    setsockopt(fd,SOL_SOCKET,SO_SNDBUF,(char*)&snd_buf,sizeof(int)));
    setsockopt(fd,SOL_SOCKET,SO_RCVBUF,(char*)&rcv_buf,sizeof(int)));
    setsockopt(fd,IPPROTO_TCP, TCP_NODELAY,(char*)&ndelay, sizeof(int)));

Note that for the Linux TCP implementation, the TCP control flow window that will be used is about half the SO_RCVBUF option size, so about 32000 bytes.

Overview of some implementation details

The Linux BIP-IP driver use internally the BIP message-passing API and implementation in the same manner that the Myricom Linux driver is based on the MyrinetAPI.

There is a kind of bug in the Linux 2.0 TCP implementation that will make performance drop (to about 2Mbytes/s) for certain size of messages, this behaviour can be observed with both the Myricom driver and our BIP-IP driver, here is a patch that correct this behaviour. (Note that all tests were done with this patch applied).

Not that this patch will only eliminate the performance drop for TCP connection that have the Nagle algorithm disabled with the SO_NDELAY option. Fortunately this is the case for PVM, LAM-MPI and MPICH over IP.

Another problem is that Linux kernel allocation is not really designed for network buffers greater than a page size, so we have also written a small patch to allow to use efficiently larger MTU. Basically this patch allow the Linux kernel to keep a pool of buffers of "large" sizes that are recycled.

Netperf benchmarks

Netperf Benchmarks measure TCP and UDP performance. The results below show TCP and UDP performance of the Debian Linux TCP/IP stack over BIP. All results and information about Netperf Benchmarks are available at Netperf Home Page. Best other results are also given here for a comparison purpose.

Througput benchmarks

BENCH TYPE	PAQUET SIZE	THROUGPUT (Mb/s)	SYSTEM	NETWORK
UDP_STREAM	16384	356.11	DEC500/PPro	Myrinet
	7872	352.42	PPro	Myrinet with BIP
	8192	287.79	DEC500/DEC500	Myrinet
TCP_STREAM	1048576	750.16	SGI Power Challenge	HiPPI
	16384	338.05	PPro	Myrinet with BIP
	7872	315.89	PPro	Myrinet with BIP
	65536	271.35	DEC500/DEC500	Myrinet

Latency benchmarks (by request-response speed)

BENCH TYPE	REQUEST SIZE	TRANSACTIONS/s	SYSTEM	NETWORK
UDP_RR	1	8826.16	PPro	Myrinet with BIP
UDP_RR	1	4403.99	HP K460	FC-266
TCP_RR	1	7506.20	PPro	Myrinet with BIP
TCP_RR	1	4184.95	Dual PPro	FastEthernet

(All messages sizes are expressed in bytes)
