Using SSH keys and SSH agent

Most oftenly, the SSH client is used with a pair [user + password] to connect to a remote machine.

However, it is mandatory to use authentication via private/public key pair [1] to connect to a PSMN server.

Note

As a good analogy, it is like using a public padlock (public key) and a private key (which is securely locked).

Moreover, using an SSH agent, you can avoid typing passwords/passphrases everytime.

Warning

if allo-psmn request a password, something is wrong. Either you are using the wrong ssh key, or it is not unlock, or you forgot to load or forward your ssh-agent.

Generate a key set

This is a generic explanation on how to generate your personal key set. Use the following commands:

For Windows users, relate to Windows 10 documentation first.

For Linux, BSD et MacOS X, here are the main steps to follow:

Step 1 : Start generating a set of keys

In a ‘terminal’, use the ssh-keygen command:

user@workstation:~$ ssh-keygen
Generating public/private ed25519 key pair.
Enter file in which to save the key (/home/user/.ssh/id_ed25519):
            <Press Enter>
Created directory '/home/user/.ssh'.
Enter passphrase (empty for no passphrase):

Note

Older default parameters of SSH may generate a rsa key type. Replace .ed25519 by .rsa if so.

Step 2 : Choose a good/strong passphrase

Warning

IMPORTANT STEP : define a good passphrase to lock your private key.

This is a bad passphrase:

toto

If the passphrase is too short or too poor, the program will answer:

Enter same passphrase again:
passphrase too short: have 4 bytes, need > 4
Saving the key failed: /home/user/.ssh/id_ed25519.

This is a good passphrase (altought quite complicated):

A bottle of "Glenfîddich Rare Collection 1937" cost 15 000 euros VAT. Minimum...

You can use diceware, available on PSMN’s login nodes, to create a random passphrase (and/or pwgen or apg for randomly generated passwords). But creating your own is a much better practice (easier to remember).

~$ diceware --delimiter " "
Cathouse Acid Tripping Perkiness Chop Footrest

Be aware that altought any lettering is allowed in passphrases, using unicode might cause problems between platforms.

https://xkcd.com/936/ "Password Strength" — Fig. 5 The relevant XKCD

You can read this excellent article about usability of passwords.

Step 3: Finish the keyset generation

Finally ssh-keygen says:

Enter same passphrase again:
Your identification has been saved in /home/user/.ssh/id_ed25519.
Your public key has been saved in /home/user/.ssh/id_ed25519.pub.

A fingerprint is also generated (as below):

The key fingerprint is:
7a:ec:b2:1c:90:f5:2f:77:c5:bc:36:8b:0f:23:2e:76 user@workstation
The key's randomart image is:
+--[ RSA 2048]----+
|                 |
|                 |
|      .          |
|     o .     o   |
|    o   S     +  |
|     . o .   . . |
|      o + + + +  |
|     ..+o+Eo = o |
|      o+.o. ..o  |
+-----------------+

Step 4: Save your ssh key set

If you want, you can copy/paste the fingerprint verification (fingerprint + randomart image) into a file ~/.ssh/fingerprint.

Save a copy of your private key (id_ed25519), your fingerprint file (fingerprint) and your public key (id_ed25519.pub), in a safe and personal place (a USB key, for example, not a cloud drive).

Load ssh agent

Linux / BSD / MacOS X

The simplest way to load your ssh-agent is:

ssh-add

The agent will ask for your passphrase, and will be loaded for the entire session on all opened terminals.

Tip

There’s a lot of alternative methods:

Use ssh-askpass, ssh-askpass-gnome or ksshaskpass from your favorite distribution…
Or load ssh-agent in a script:

eval `ssh-agent`
ssh-add

[DEPRECATED] Or install and use keychain (CLI tool, use Github release page, see keychain documentation for installation).

You can use a script (in your ~/.bashrc) to start keychain, and use it in your session:

# add key(s) to agent
eval `keychain --eval --agents ssh id_ed25519`

Note

On MacOSX Keychain, you may add the option ‘’–inherit any’’ (If, every time you open a new Terminal window, keychain ask for your passphrase, remove the ‘’–inherit any’’ option):

# add key(s) to agent
eval `keychain --eval --agents ssh --inherit any id_ed25519`

Windows

See this documentation to activate SSH on Windows 10, then use the commands above.

Broadcast the public key (optionnal)

Only if you are replacing your current ssh pubkey (or adding a new one), follow these steps.

If you added your personal public key to your webform request, when creating your PSMN account. Staff had propagated it, when creating your account, skip this step to “Hop and multihops”.

If you’ve asked PSMN’s Staff (via the appropriate form), Staff will propagate properly, skip this step to “Hop and multihops”.

For the automatic login to work (ie: without password, but with passphrase), your personal public key (or padlock, id_ed25519.pub) must be on all target servers, into the ~/.ssh/authorized_keys file.

At PSMN, your /home is shared between all nodes (not gateways), so, from your workstation, simply do as below:

scp ~/.ssh/id_ed25519.pub mylogin@allo-psmn:~/id_ed25519.pub.perso

id_ed25519.pub                100%  9KB 9.3KB/s   00:00

Then add (>>) your public key to ~/.ssh/authorized_keys:

ssh mylogin@allo-psmn

cat id_ed25519.pub.perso >> .ssh/authorized_keys
exit

If you have successfully loaded your ssh-agent and added your new key into it, you can now login to allo-psmn with your new keypair:

user@workstation:~$ ssh -A mylogin@allo-psmn.ens-lyon.fr

(mylogin corresponding to your login at PSMN)

Hops and multihops

The servers (calculations, preview, data) are sometimes behind several firewalls or gateways (or multi-hop SSH, “rebonds” SSH in French). The SSH documentation explains how to pass a single gateway (ProxyCommand or ProxyJump options). It is possible to cumulate this system of “bridge jump” several times. For this example, we will detail multi-hop SSH from the network shown below.

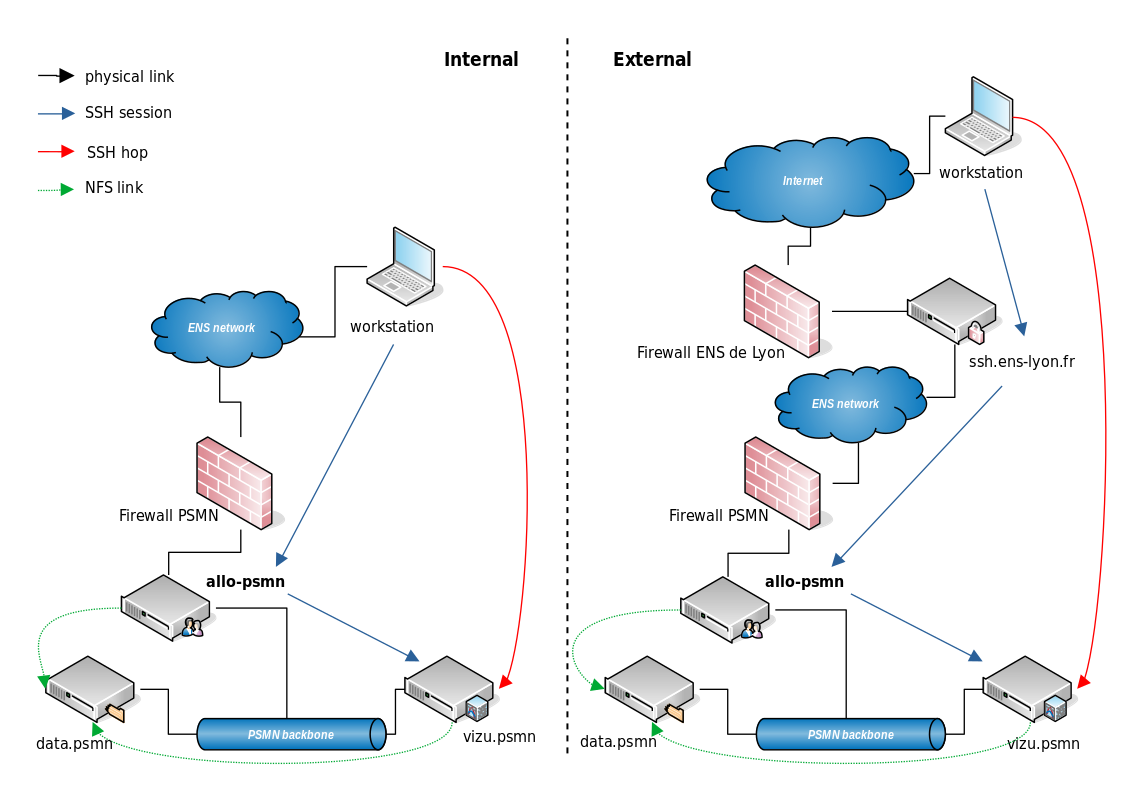

SSH multi-hops — Fig. 6 The **Workstation** (your computer!) reach the server **vizu.psmn** through two SSH gateways (red path).

From a Mac/Linux/BSD machine

Manual multihop

We are going to manually accumulate connections (blue paths):

user@workstation:~$ ssh -A mylogin@ssh.psmn.ens-lyon.fr

mylogin@ssh.psmn.ens-lyon.fr:~$ ssh -A allo-psmn

mylogin@allo-psmn:~$ ssh vizu.psmn

mylogin@vizu.psmn:~$

These manual operations can be automatized (See ENS documentation for ssh.ens-lyon.fr if you have an ENS account).

Automated multihop

You need to add the gateways and target servers entries in the ~/.ssh/config file on your workstation. By adding up the different connections as you go.

Configuration example

You can automate these connection steps by using this SSH config file (~/.ssh/config) on your client workstation (not in your PSMN’s home).

Host *
    ServerAliveInterval 60
    ForwardX11Timeout 1d
    TCPKeepAlive yes
    # should be default:
    AddKeysToAgent yes
    ForwardAgent yes
    # for Linux:
    ForwardX11 yes
    # for MacOSX:
    # ForwardX11Trusted yes
    Compression yes
    # StrictHostKeyChecking no
    StrictHostKeyChecking accept-new
    HashKnownHosts no

###
# internal gateway
Host allo-psmn
    HostName allo-psmn.psmn.ens-lyon.fr
    User myloginpsmn

# connection to x5570comp1 from within ENS network
Host x5570comp1
    Hostname x5570comp1
    User myloginpsmn
    # ProxyCommand ssh myloginpsmn@allo-psmn netcat -w1 %h %p
    ProxyJump allo-psmn

# connection to e5-2670comp2 from within ENS network
Host e5-2670comp2
    Hostname e5-2670comp2
    User myloginpsmn
    # ProxyCommand ssh myloginpsmn@allo-psmn netcat -w1 %h %p
    ProxyJump allo-psmn

###
# external gateway
# pay attention to logins!

Host ssh-psmn
    Hostname ssh.psmn.ens-lyon.fr
    User myloginpsmn

Host ssh-ens
    Hostname ssh.ens-lyon.fr
    User myloginens
    IdentityFile path/to/your/private/key

Host allo-externe
    HostName allo-psmn.psmn.ens-lyon.fr
    User myloginpsmn
    # ProxyCommand ssh myloginpsmn@ssh.psmn.ens-lyon.fr tcpconnect allo-psmn %p
    ProxyJump ssh-psmn
    # User myloginens
    # ProxyJump ssh-ens

Host allo-psmn-multihop
# same as allo-externe, for proper X2go example
    HostName allo-psmn.psmn.ens-lyon.fr
    User myloginpsmn
    ProxyJump ssh-psmn

# connection to x5570comp1 from outside ENS network
Host x5570comp1-ext
    HostName x5570comp1
    User myloginpsmn
    # ProxyCommand ssh myloginpsmn@allo-externe netcat -w1 %h %p
    ProxyJump allo-externe

# connection to e5-2670comp2 from outside ENS network
Host e5-2670comp2-ext
    Hostname e5-2670comp2
    User myloginpsmn
    # ProxyCommand ssh myloginpsmn@allo-externe netcat -w1 %h %p
    ProxyJump allo-externe

# tunnel to visualization server from within ENS network
Host r740visu
    Hostname r740visu
    User myloginpsmn
    # from inside ENS network
    Proxyjump allo-psmn
    # from outside ENS network
    # ProxyJump allo-externe
    # X2go example:
    # ProxyJump allo-psmn-multihop

You need to replace myloginpsmn by your own PSMN login, and myloginens by your own ENS login (if you have an ENS account). If you use ProxyCommand, netcat -w1 can be replaced by tcpconnect.

These two examples show such simplification:

user@workstation:~$ ssh -J allo-psmn r740visu

myloginpsmn@r740visu:~$

user@workstation:~$ ssh x5570comp1-ext

myloginpsmn@x5570comp1:~$

From a Linux/BSD or a Mac, you can use as many hops as you need. The list of connection servers (login nodes) to the PSMN is available here.
